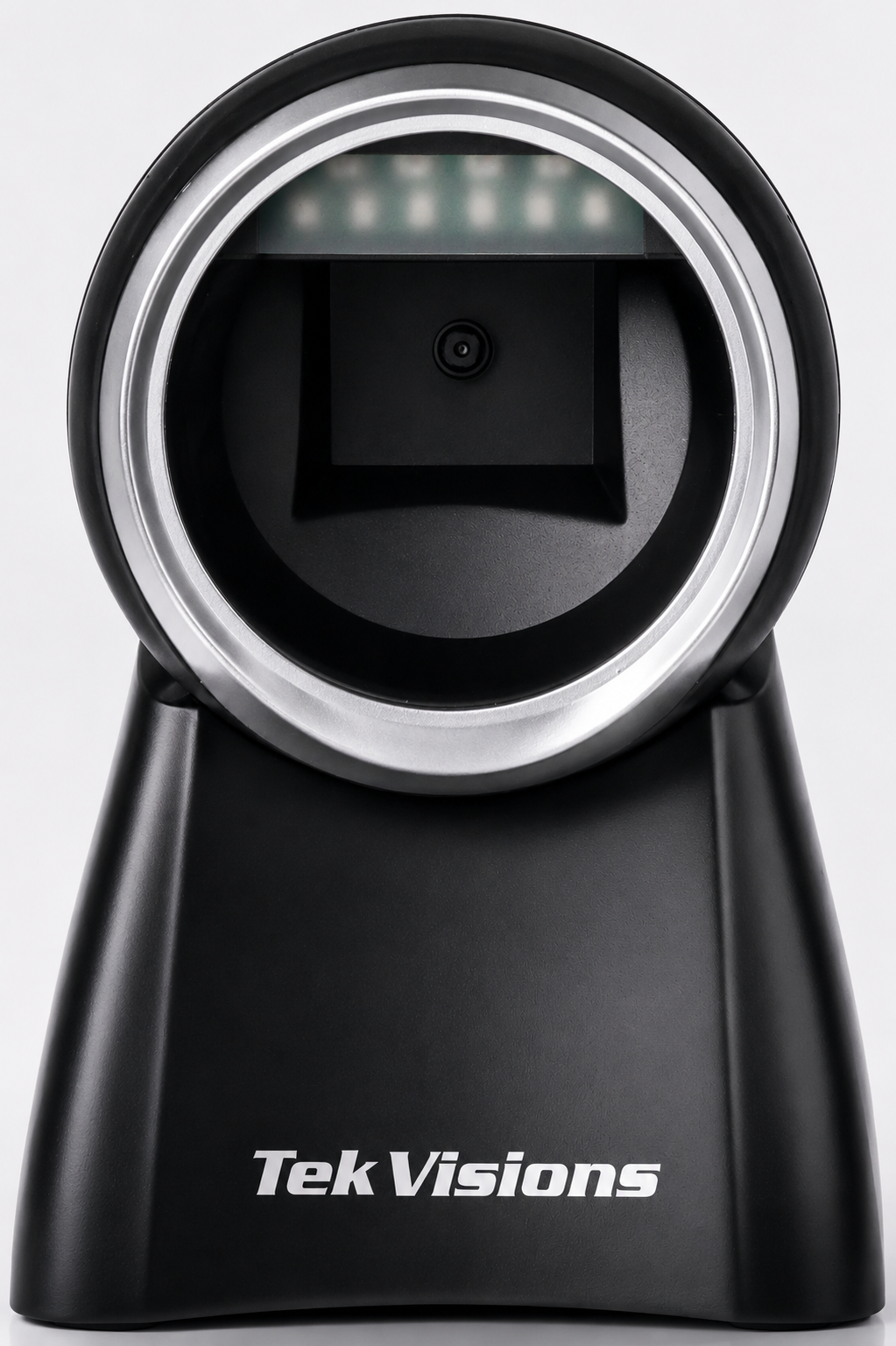

TEK-8600 Omni-Directional Barcode Scanner

TEK-8600 Omni-Directional Barcode Scanner

TekVisions answer to fast, easy, and accurate scanning!

The TEK-8600 is an omnidirectional 2D desktop scanner with advanced CMOS image recognition technology.

Can easily read barcodes, as well as images of barcodes off of cell phones! Students won't lose those!!

Contact us for more information and our "try before you buy" program!

Piggybackable State Contracts Available!

Specifications and Features:


Scan Type CMOS
Light Source Red LED
Image sensor 1280*800
Resolution 1D:≥3mil,2D:≥8.7mil @PCS90%
Decoding speed 100CM/S
View Horizontal 62°× Vertical 41°
Depth of field 3mil:55~100mm,13mil:55~350mm
Scan Mode Auto sense
Scan angle Roll:±360°、Pitch:±70°or greater、Yaw:±65°or greater)
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light

Physical Parameter

Weight ≈265g(No Cable)
Dimension 103mm L × 105mm W × 150mm H
Communication Mode USB-KBW, USB-COM (Need driver),RS232
Interface Type USB、RS232
Power Supply DC 5V@290mA(work)



Operating temperature -20℃ to 55℃
Storage  temperature -20℃ to 60℃
Humidity 5% to 95%(non-condensing)
Transport vibration Test 10H@125RPM


☆ Fashionable design, auto sense scanning.

☆ 2d image technology, read barcodes on everything including cell phones!

Request a Quote

Our experienced technicians can help you determine the best solution based on your needs and budget.
