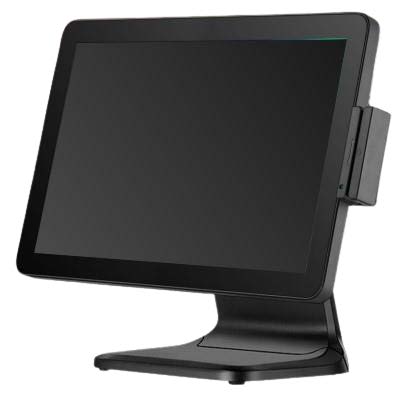

15″ TEK330
15" TEK330
15” LED LCD
Available in i3 and i5
TekVisions answer to save space in small places! The Tek-330 is a 15" screen and compact!
Don't forget about our "Try-Before-You-Buy" Program!
Contact us for more information!
- Smaller Footprint, Save Space!
- Available in i3 and i5
- True-Flat Projected Capacitive Multi-Touch (PCAP)
- IP65 on the front panel
- Modular Peripherals for Easy Installation
- Aluminum Alloy Die-Casting Housing for Optimal Thermal Dissipation
- 75mm x 75mm AND 100X100 VESA Compliant
Specifications
| Processor | Intel® Celeron® Processor J6412 | Intel® Core™ i3/i5 Tiger Lake Processor |
| Memory | DDR4 8G 3200 MHz (Max. 16GB) | DDR4 8GB 3200MHz(Max. 16GB) |
| Storage | NVME M.2 SSD 256GB(Max. 1TB) | NVME M.2 SSD 256GB(Max. 1TB) |
| Power Supply | 12V/5A | 12V/5A |
| OS Support | Windows 10/Windows 11/Linux | Windows 10/Windows 11/Linux |
| Display & Touch | ||
| Display | 15.6" FHD IPS LCD Display | 15.6" FHD IPS LCD Display |
| Resolution | 1920 x1080 | 1920 x1080 |
| Touch | True-flat PCAP touch Screen (Support Multi-touch) | True-flat PCAP touch Screen (Support Multi-touch) |
| I/O Expansion | ||
| Serial Port | DB9*2 | DB9*2 |
| USB Port | USB3.0*2 + USB2.0*4 | USB3.0*2 + USB2.0*4 |
| LAN Port | 10/100/1000 MB*1 | 10/100/1000 MB*1 |
| Display Port | VGA*1 | VGA*1 |
| Audio | Line-out*1, Mic-in*1 | Line-out*1, Mic-in*1 |
| Expansion Slot | Mini-PCIe slot*1 | Mini-PCIe slot*1 |
Specifications (continued)
| Physical Dimension | ||
| Packaging Dimension | 415x175x435MM | 415x175x435MM |
| Gross Weight | 6.75 KGS | 6.75 KGS |
| Environmental | ||
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20℃ ~ 70℃, 10%RH - 90%RH | -20℃ ~ 70℃, 10%RH - 90%RH |
| Options&Peripherals | ||
| 2nd Display | VFD/11.6"/13.3"/15.6" 2nd LCD Display | VFD/11.6"/13.3"/15.6" 2nd LCD Display |
| Fingerprint | Digital Persona URU4500 | Digital Persona URU4500 |
| Dallas Key | Dallas I-button Reader | Dallas I-button Reader |
Request a Quote
Our experienced technicians can help you determine the best solution based on your needs and budget.
